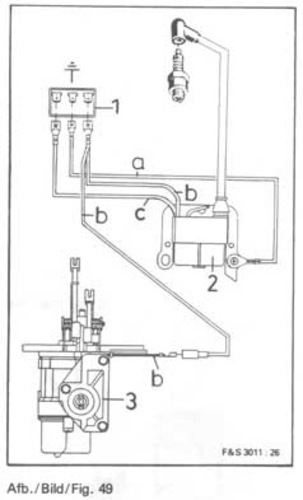

Hier Schaltplan:
1 = Electronic ignition module (CDI)
2 = Ignition coil
3 = Carburettor
The E-start coil has an extra connector for charging the battery.
There are two types of coil and they measure different.
PRUFREX
blue/gray/red coil wit blue/black CDI
a = black
b = red
c = blue
When the red and blue wires are connected the wrong way there will be no spark but no damage to the CDI or Coil will occur.
The connections are marked on top of the CDI
Measurements for PRUFREX
wire b to wire c = 800-1000 Ohm
wire b to wire a = 800-1000 Ohm
cap to wire a = 2750 Ohm
Auf einer CDI sind die Farben der Kabel angegeben.
